Powder Coated Aluminum Sheet , Metal Curtain Wall 1100H24/3003h24 Stable

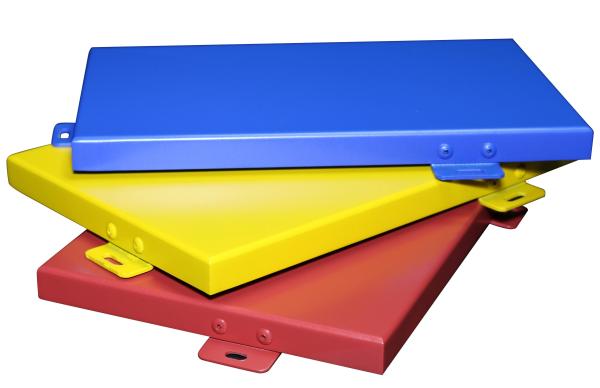

Powder coated aluminum sheet

Powder coated aluminum sheet is made of aluminum or aluminum alloy for the substrate, the processing of molding and the decorative surface is formed by powder coating spray curing, with protective and decorative coating of aluminum sheet building decoration.

Product specifications:

Aluminum dimensions: thickness 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Width :1000mm-1900mm length: ≤ 6000mm

Finished products size: Machinable molding length ≤ 6000mm, width ≤ 1500mm, height ≤ 1.9mm.

Special Size: Conventional circular plate forming radius ≥ 150mm Special can make modle.

Punching hole punching aperture ≤ 80mm hole shape, size, spacing can be customized according to customer requirements.

Data comparison:

Data detection:

Test item		Requirements of standard		Result
Film thickness		Min≥40μm		Min47μm
Dry-film hardness		≥1H		2H
Gloss value		Gloss value＜30	Tolerance±5	Gloss value17.7-18.6 average18.3
		30≤Gloss value＜70	Tolerance±7
		Gloss value≥70	Tolerance±10
耐冲击性		Both the aluminum should be no crack. Coating without loss and craze		Both the aluminum no crack. Coating without loss and craze
Film adhesion	Drying adhesion	Class0		Class0
	Wet adhesion	Class0		Class0
	Boiling water adhesion	Class0		Class0
Hydrochloric acid resistance		No change		No change
Nitric acid resistance		No changes such as blistering,△E≤5.0		No changes such as blistering,△E=1.2
Mortar resistance		No change		No change
Solvent resistance		No base exposed		No base exposed

Product Advantage

The pre-treatment and baking temperature to ensure that the circumstances can be used without bottom-spraying process;

Coating is easy to control, greatly reducing production costs;

Coating with good flatness, apparent quality greatly improved;

Coating line baking temperature coating;

High utilization of powder, not less than 95%;

Paint and construction process solvent-free evaporation, reduce the operator and the environment.
